İnce Cidarlı Isıtmalı Takım Tutucular Şaftı Karbür Olan Takımlar İçin

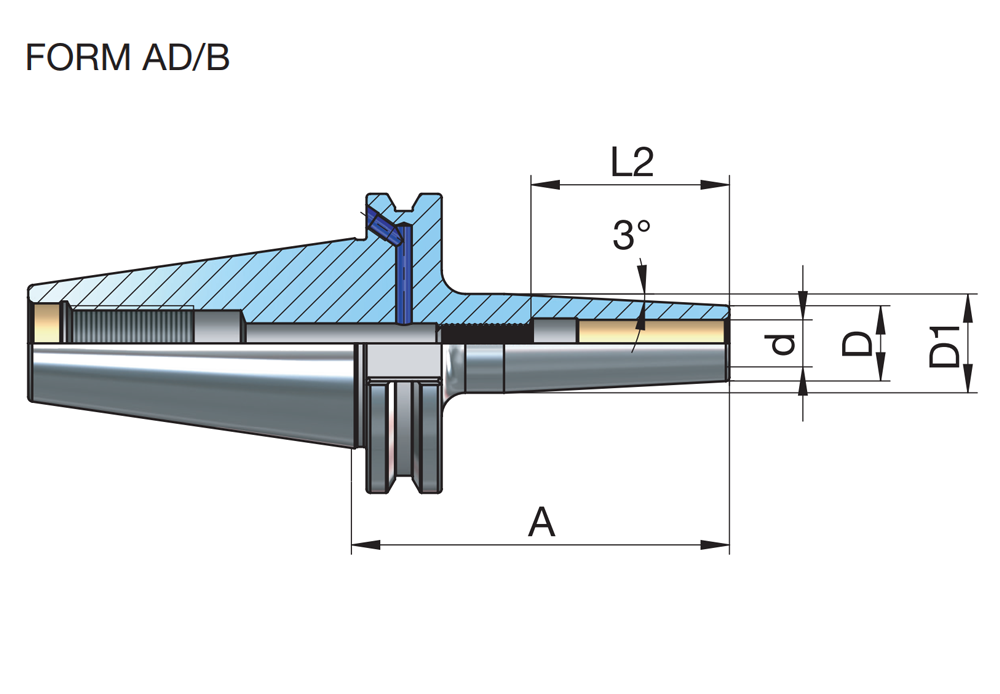

| SİPARİŞ NO | Form | A | d | D | D1 | L2 | SK | Kg | GÖRSEL İNDİR |
|---|---|---|---|---|---|---|---|---|---|
| 403.25.03.120.S | AF | 120 | 3 | 9 | 18 | 14 | SK40 | 0.91 |    |
| 403.25.03.80.S | AF | 80 | 3 | 9 | 14 | 14 | SK40 | 0.84 | |
| 403.25.04.120.S | AF | 120 | 4 | 10 | 19 | 17 | SK40 | 0.92 | |
| 403.25.04.80.S | AF | 80 | 4 | 10 | 15 | 17 | SK40 | 0.84 | |
| 403.25.05.120.S | AF | 120 | 5 | 11 | 20 | 20 | SK40 | 0.94 | |
| 403.25.05.80.S | AF | 80 | 5 | 11 | 16 | 20 | SK40 | 0.85 | |
| 403.25.06.120.S | AF | 120 | 6 | 12 | 21 | 36 | SK40 | 0.97 | |
| 403.25.06.80.S | AF | 80 | 6 | 12 | 17 | 36 | SK40 | 0.88 | |
| 403.25.08.120.S | AF | 120 | 8 | 14 | 23 | 36 | SK40 | 1.00 | |
| 403.25.08.80.S | AF | 80 | 8 | 14 | 19 | 36 | SK40 | 0.90 | |
| 403.25.10.120.S | AF | 120 | 10 | 16 | 25 | 42 | SK40 | 1.04 | |
| 403.25.10.80.S | AF | 80 | 10 | 16 | 21 | 42 | SK40 | 0.91 | |
| 403.25.12.120.S | AF | 120 | 12 | 18 | 27 | 47 | SK40 | 1.05 | |
| 403.25.12.80.S | AF | 80 | 12 | 18 | 23 | 47 | SK40 | 0.91 | |
| 403.25.06.160.S | AF | 160 | 6 | 12 | 25 | 36 | SK40 | 1.10 | |
| 403.25.08.160.S | AF | 160 | 8 | 14 | 27 | 36 | SK40 | 1.16 | |
| 403.25.10.160.S | AF | 160 | 10 | 16 | 29 | 42 | SK40 | 1.23 | |
| 403.25.12.160.S | AF | 160 | 12 | 18 | 31 | 47 | SK40 | 1.24 | |
