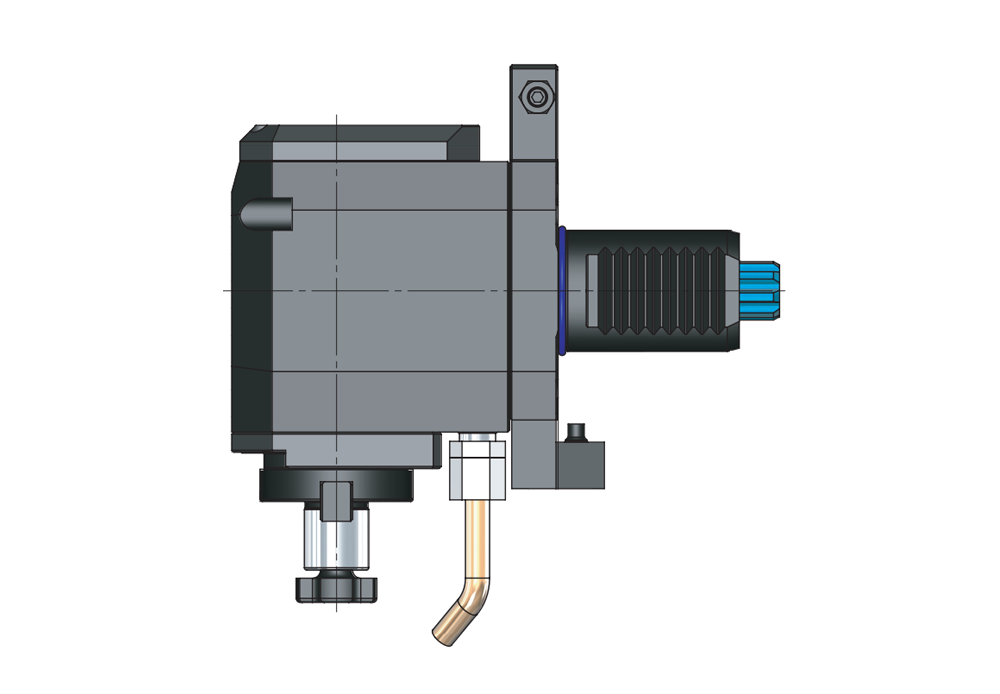

Radial Milling Head Chuck For Cutter Arbor DIN 6357 With Fixing Unit
| ORDER NO | A | D1 | D2 | E | H | L | C | B | N.Max, (1/min) | T.max. (Nm) | A1 | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 82RA40K16A065C63 | 65 | 40 | 16 | 38 | 65 | 63 | 63 | 76 | 6000 | 50 | 53 | |
| 82RA40K16B065C63 | 65 | 40 | 16 | 38 | 65 | 63 | 63 | 76 | 6000 | 50 | 53 | |
| 82RA40K22A065C63 | 65 | 40 | 22 | 38 | 65 | 63 | 63 | 76 | 6000 | 50 | 53 | |
| 82RA40K22B065C63 | 65 | 40 | 22 | 38 | 65 | 63 | 63 | 76 | 6000 | 50 | 53 |
