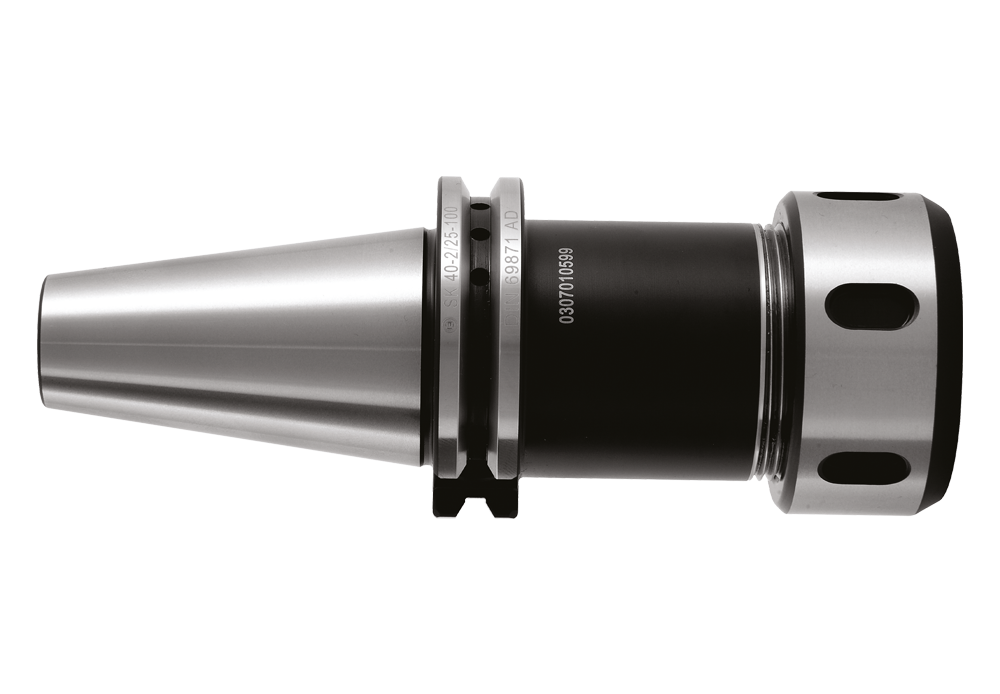

Collet Chucks OZ

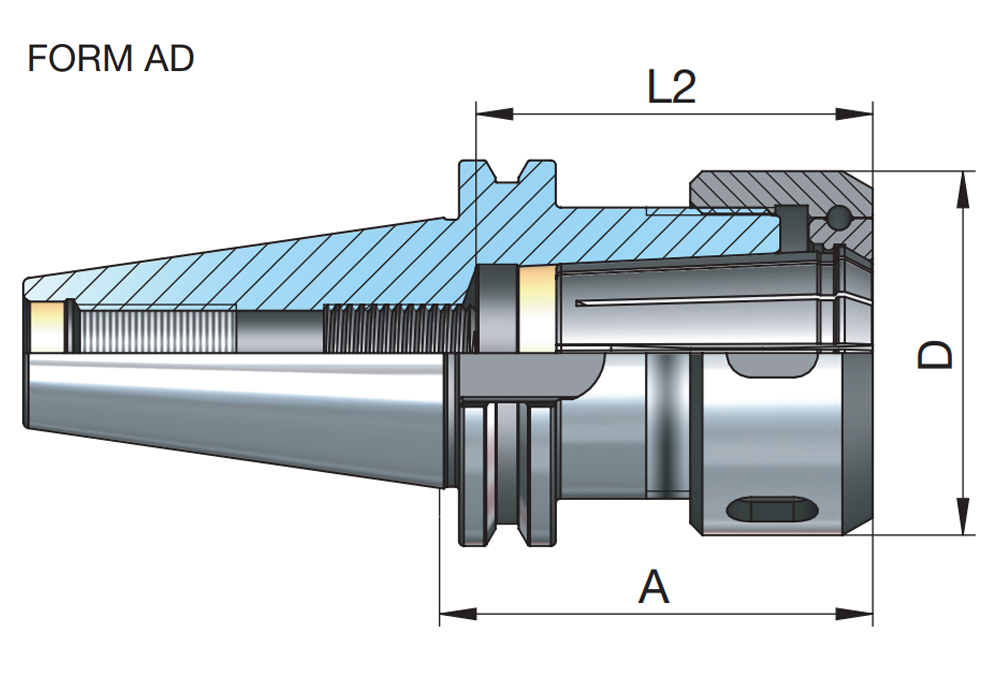

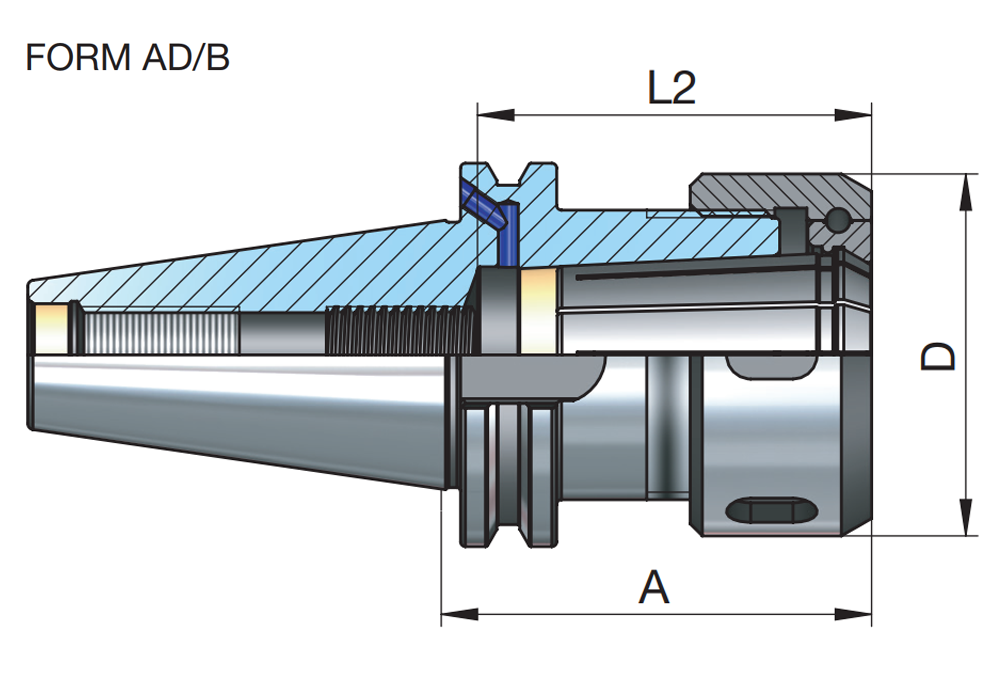

| ORDER NO | Form | TYPE | CAPACITY | A | D | L2 | SK | Kg | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|
| 402.01.16.70 | AD | OZ 16 | 415 E (2 - 16) | 70 | 43 | 51 | SK40 | 1.13 |    |
| 402.01.16.100 | AD | OZ 16 | 415 E (2 - 16) | 100 | 43 | 51 | SK40 | 1.44 | |
| 402.01.25.70 | AD | OZ 25 | 462 E (2 - 25) | 70 | 60 | 64 | SK40 | 1.30 | |
| 402.01.25.100 | AD | OZ 25 | 462 E (2 - 25) | 100 | 60 | 64 | SK40 | 1.69 | |
| 402.01.32.90 | AD | OZ 32 | 467 E (4 - 32) | 90 | 72 | 74 | SK40 | 1.77 | |
| 403.01.16.70 | AF | OZ 16 | 415 E (2 - 16) | 70 | 43 | 51 | SK40 | 1.13 | |
| 403.01.16.100 | AF | OZ 16 | 415 E (2 - 16) | 100 | 43 | 51 | SK40 | 1.44 | |
| 403.01.25.70 | AF | OZ 25 | 462 E (2 - 25) | 70 | 60 | 64 | SK40 | 1.30 | |
| 403.01.25.100 | AF | OZ 25 | 462 E (2 - 25) | 100 | 60 | 64 | SK40 | 1.69 | |
| 403.01.32.90 | AF | OZ 32 | 467 E (4 - 32) | 90 | 72 | 74 | SK40 | 1.77 | |
