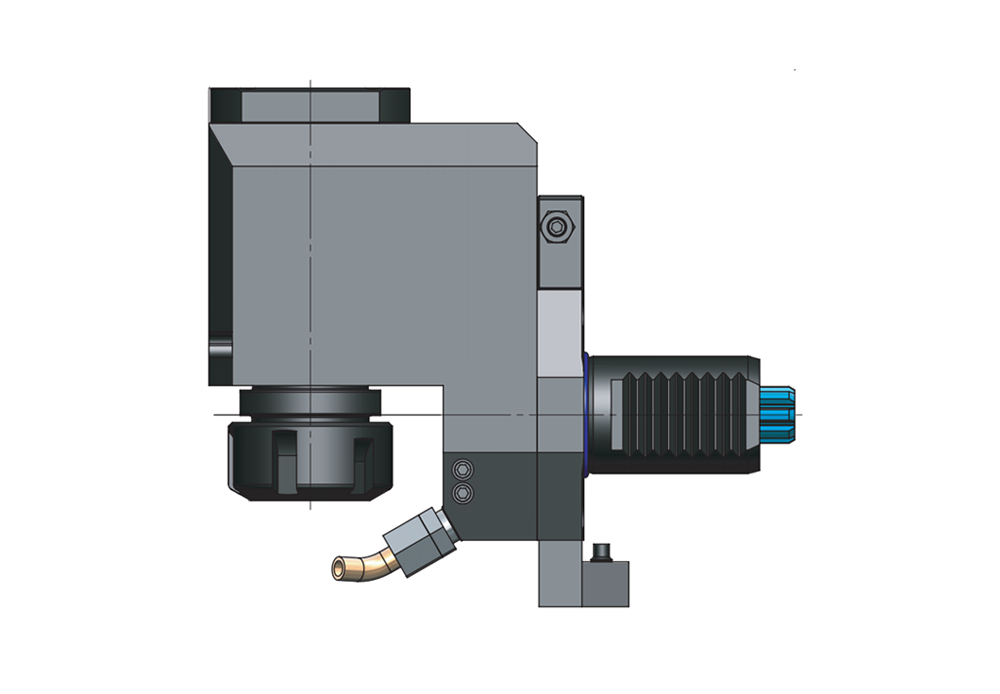

Radial Drilling-Milling Head Collet Chuck-Shifted DIN 6499 With Fixing Unit
| ORDER NO | TYPE | CAPACITY | A | D1 | E | H | L | C | B | N.Max, (1/min) | T.max. (Nm) | A1 | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 82RK50E40A112C70 | ER 40 | 472 E (3 - 26) | 32,5 | 50 | 44 | 112 | 93 | 70 | 88 | 5000 | 80 | 129 | |
| 82RK50E40B112C70 | ER 40 | 472 E (3 - 26) | 32,5 | 50 | 44 | 112 | 93 | 70 | 88 | 5000 | 80 | 129 |
